DB12.0039

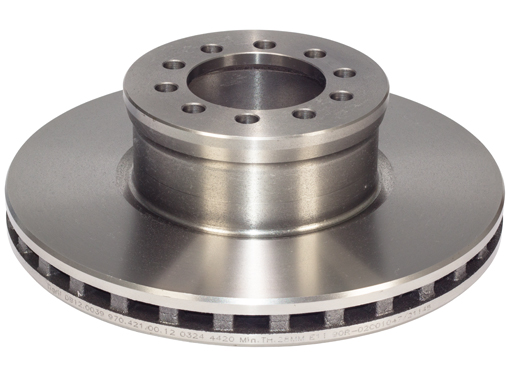

Brake disc
Main Oem :970.421.00.12
Remarks :Front

Reference No 970.421.01.12 970.421.02.12 970.421.06.12 970.421.07.12

VehicleType Actros MP 2/3/4, Antos, Atego 1/2/3, Axor 2
Main Oem :1.962.312

Criteria

SpecificationValues
Height [mm]:102,4
Bore Ø [mm]:14,5
Brake Disc Type:3
Brake Disc Thickness [mm]:34
Minimum thickness [mm]:28
Outer diameter [mm]:335
Number of Holes:10
Centering Diameter [mm]:91,6
Bolt Hole Circle Ø [mm]:120
Weight [g]:14404
