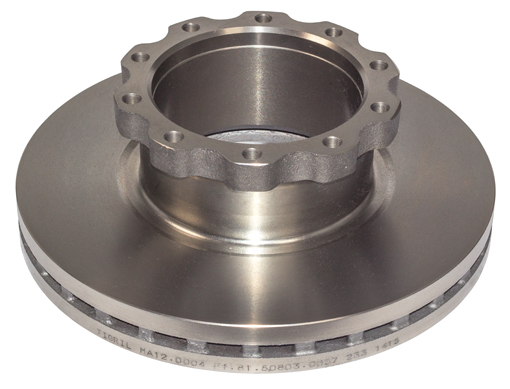

MA12.0004
Brake disc
Main Oem :81.50803.0057
Remarks :Front
Reference No
81.50803.0020 81.50803.0027
VehicleType
M 2000 L/M, TGM, TGS, TGX
DAF
ROR
Main Oem :1.962.303
Reference No
VehicleType
Criteria
Specification
Values
Height [mm]
:
128
Brake Disc Type
:
3
Brake Disc Thickness [mm]
:
45
Thread Size
:
M14 x 1,5
Minimum thickness [mm]
:
37
Outer diameter [mm]
:
377
Number of Holes
:
10
Centering Diameter [mm]
:
162
Bolt Hole Circle Ø [mm]
:
195
Weight [g]
:
24980
Main Oem :MBR5014
Reference No
VehicleType
Criteria
Specification
Values
Height [mm]
:
128
Brake Disc Type
:
3
Brake Disc Thickness [mm]
:
45
Thread Size
:
M14 x 1,5
Minimum thickness [mm]
:
37
Outer diameter [mm]
:
377
Number of Holes
:
10
Centering Diameter [mm]
:
162
Bolt Hole Circle Ø [mm]
:
195
Weight [g]
:
24980
